Enterprise Wireless & Network Infrastructure Architecture
Designed multi-zone wireless and LAN infrastructure using MikroTik and Ubiquiti, including secure routing, VPN connectivity, traffic management and surveillance/access-control integration.
Implemented Project
System architecture
Implementation scope

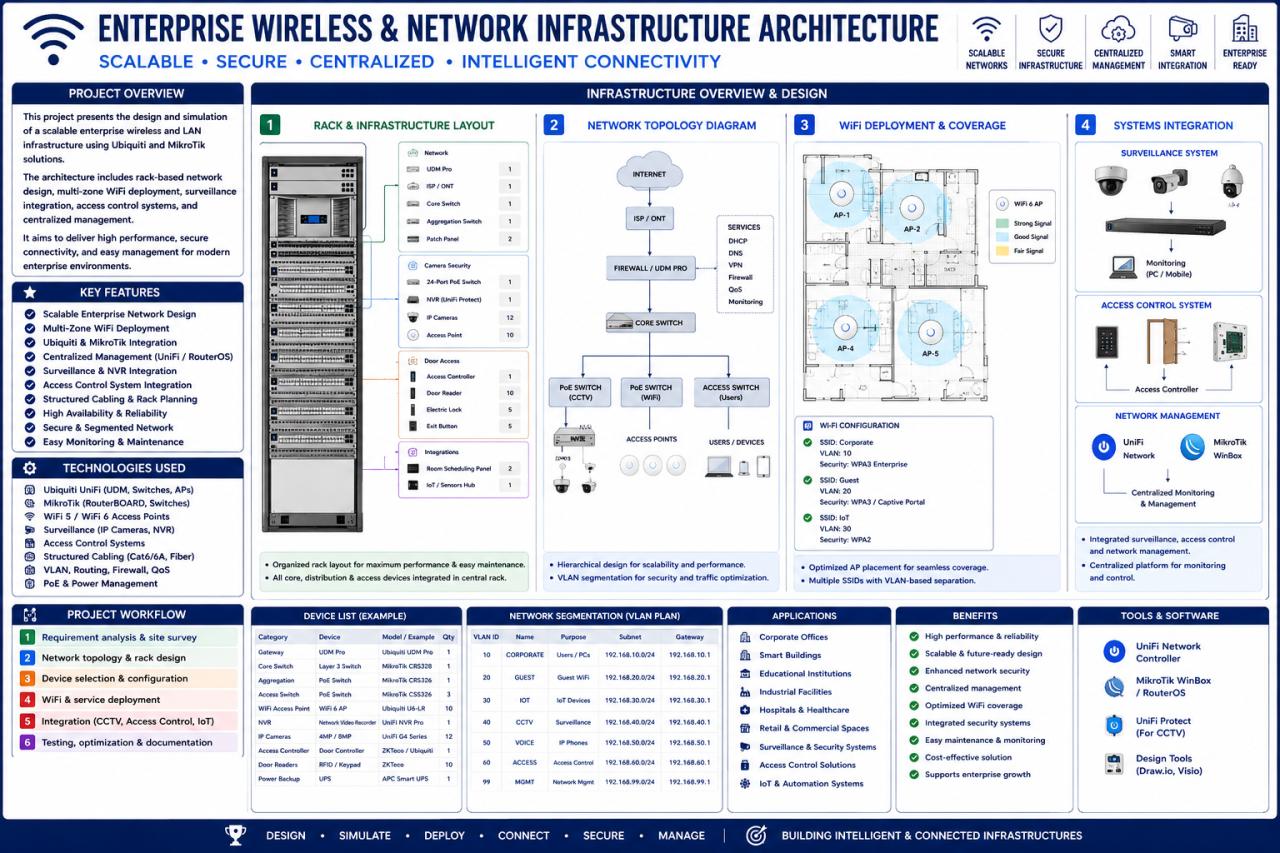

The architecture connects local users and infrastructure services through wireless and wired access. Routing and VPN connectivity provide the site-to-site boundary.
Engineering approach
The project architecture image belongs to enterprise infrastructure. Coverage planning and MPLS backbone work are presented separately so their respective tools and deliverables remain clear.
Visual documentation
Original project posters and interface screenshots are identified separately from explanatory source diagrams. The gallery documents this project only. Open any figure to inspect it at full available resolution.
