Autonomous Quadcopter UAV — Flight Control, Telemetry & FPV

Designed, assembled and flight-tested an autonomous quadcopter with GPS waypoint navigation, MAVLink telemetry to a ground control station, failsafe protection, and a live 5.8 GHz video link for remote surveillance.

System overview

Functional overview
New explanatory diagram: functional areas grouped by responsibility. This is not an as-built schematic.

Author

Mohammed Mahyoub

Scope

Team project covering propulsion sizing, airframe and electronics integration, sensor calibration, PID tuning, flight-mode and failsafe testing, telemetry and video systems, and technical documentation.

Build

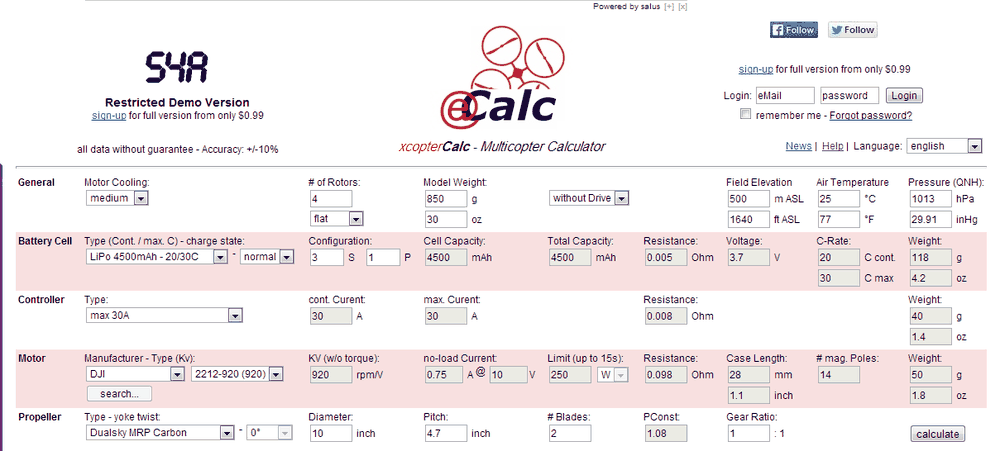

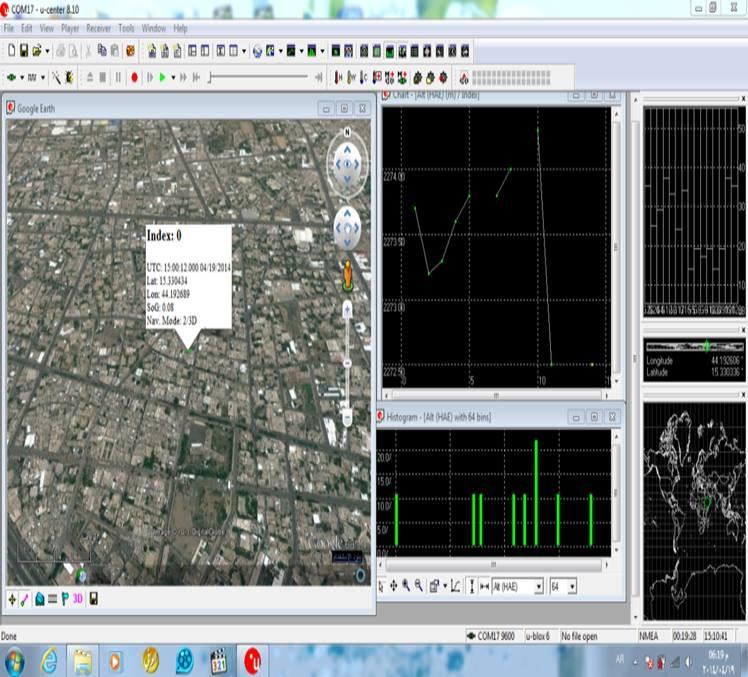

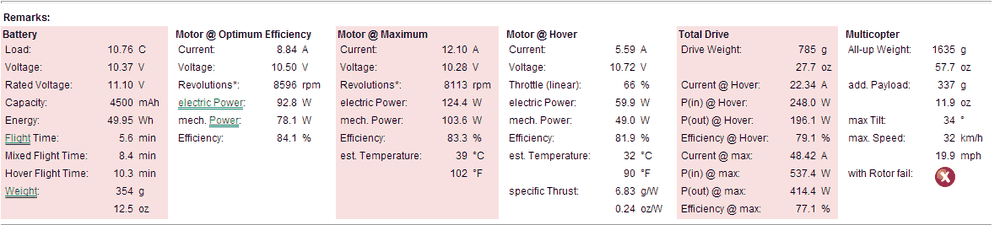

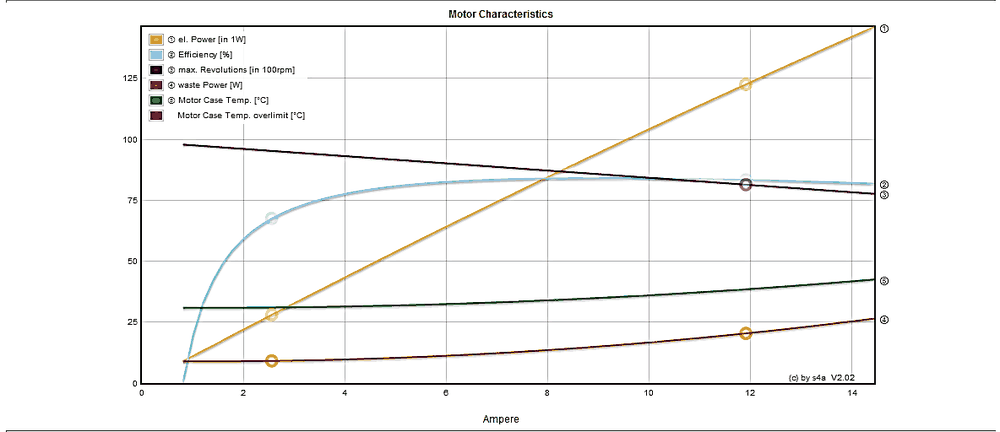

DJI F450 frame, 4× DJI 2212/920KV motors with 30A ESCs, 3S LiPo, APM 2.6 (MPU6000 IMU, barometer), uBlox NEO-6M GPS/compass, sonar and optical-flow sensors, 3DR 433 MHz telemetry (≈400 m range tested), 2.4 GHz RC via PPM encoder, 5.8 GHz video with MinimOSD. Propulsion sized in eCalc (≈1.6 kg all-up weight).

Testing

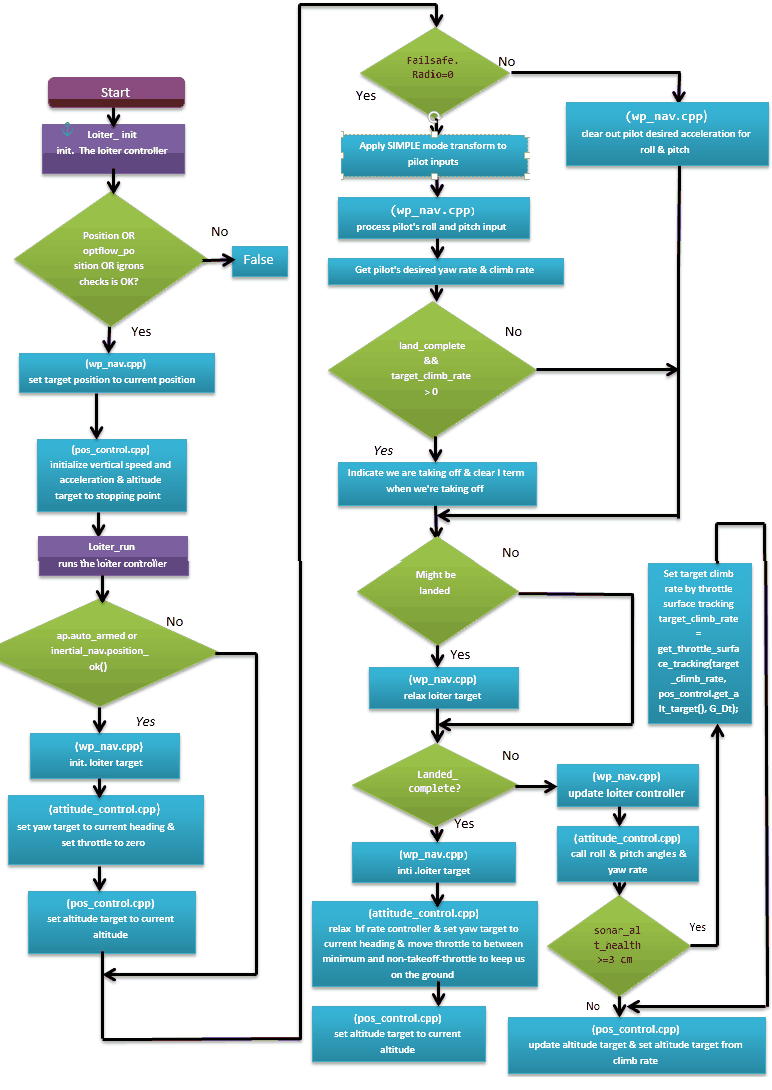

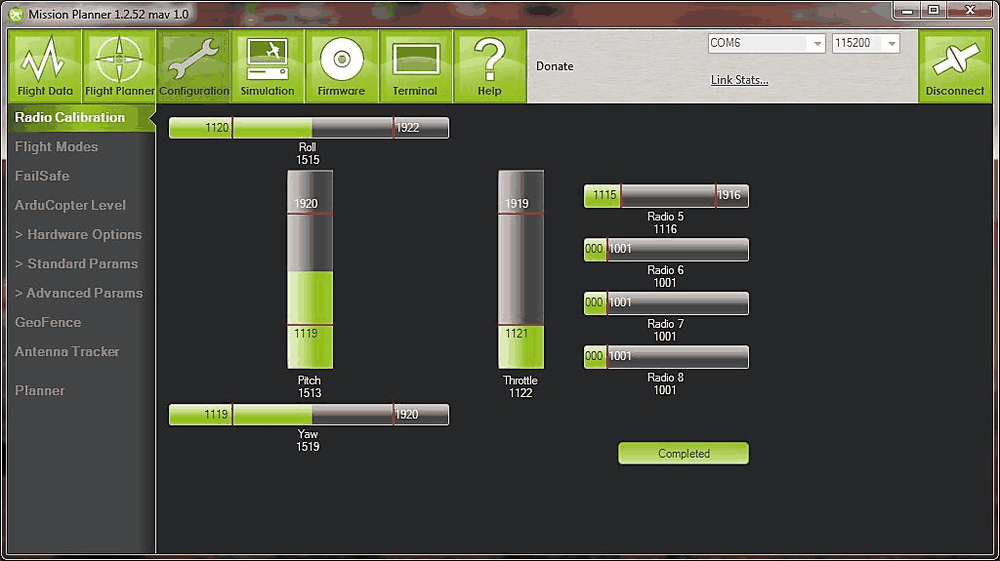

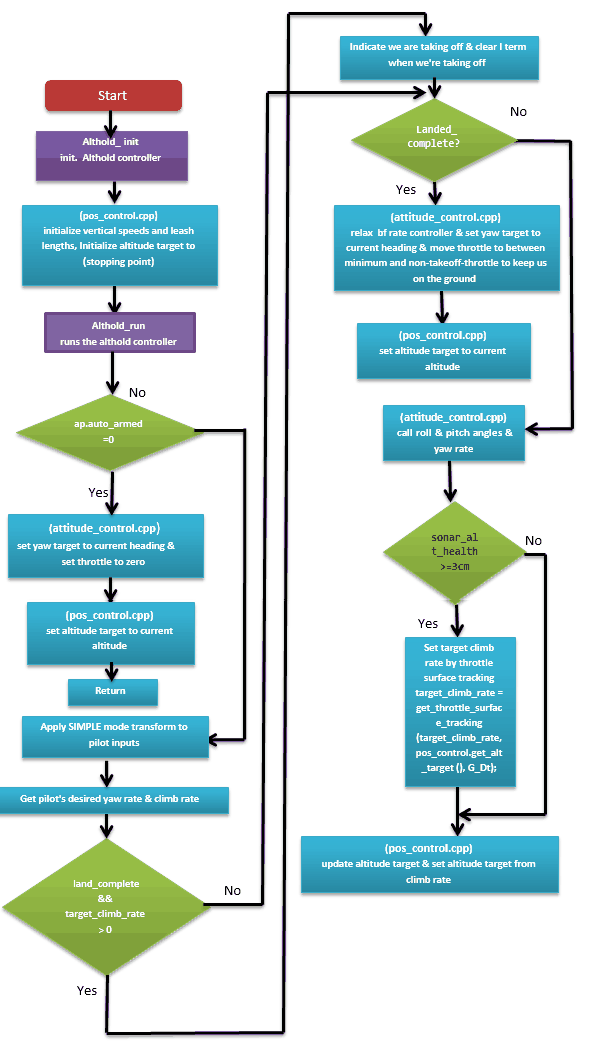

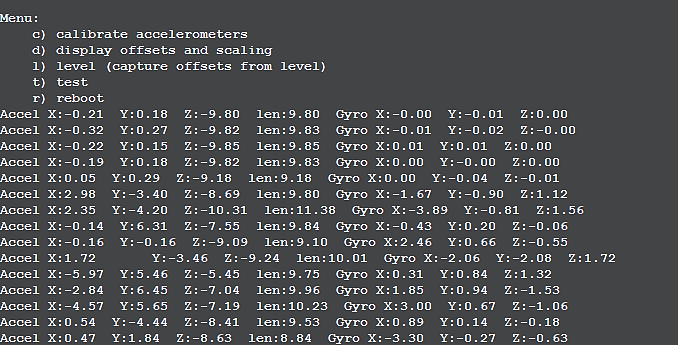

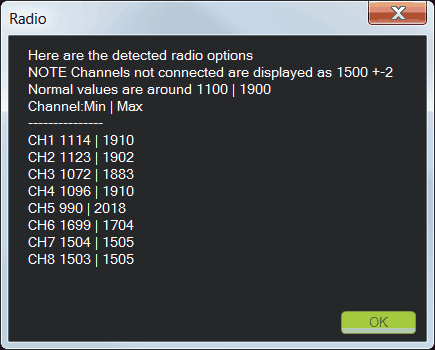

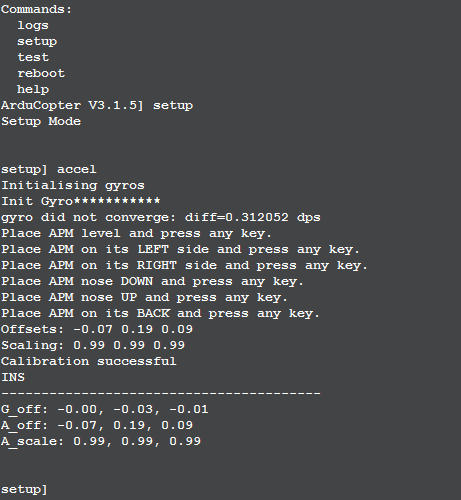

Calibrated accelerometer, compass, RC and ESCs; tuned the PIDs (final rate gains roll/pitch P 0.15 · I 0.10 · D 0.004, stabilize P 4.5); flight-tested Stabilize, Loiter, AltHold, Auto (waypoints), Guided and Follow-Me (phone GCS), plus radio, geofence and battery failsafes (land / return-to-launch).

Fixes

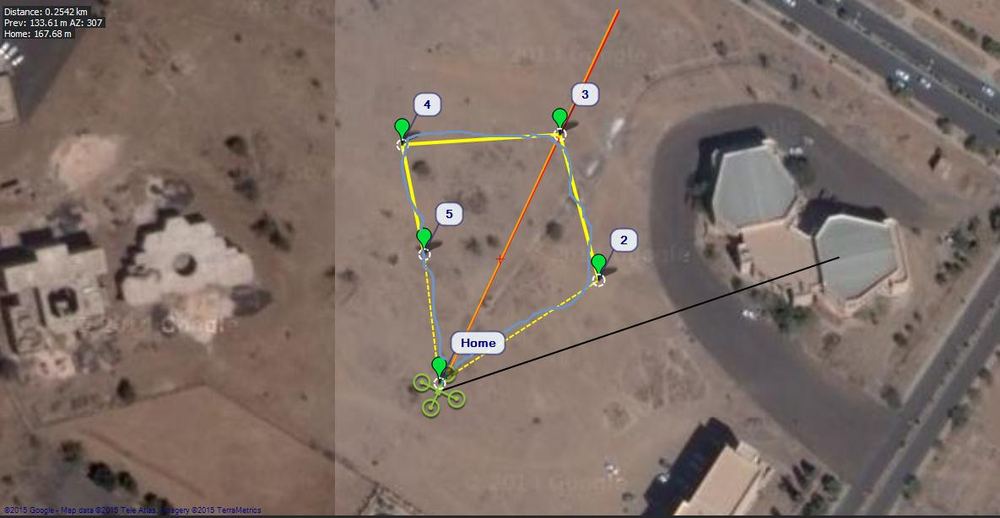

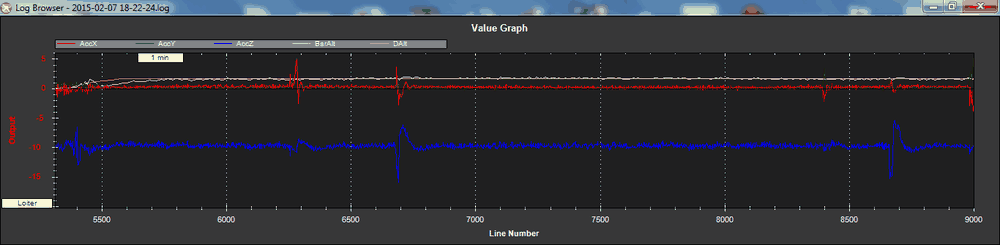

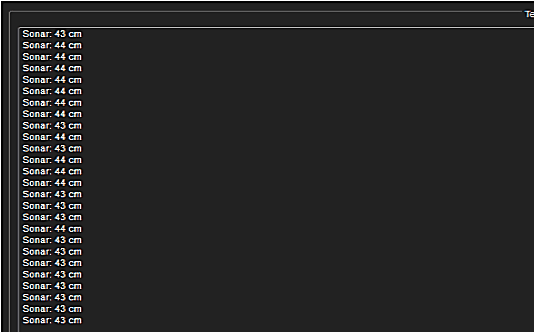

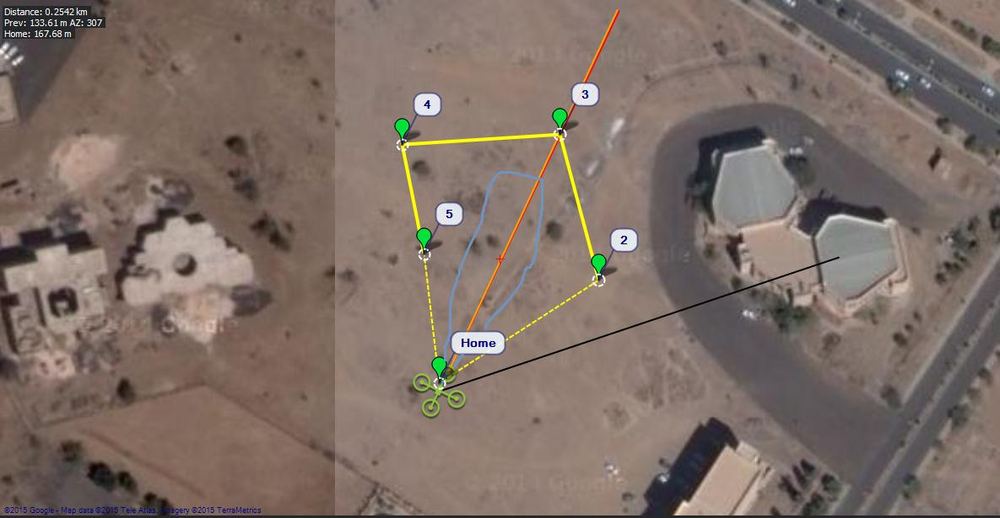

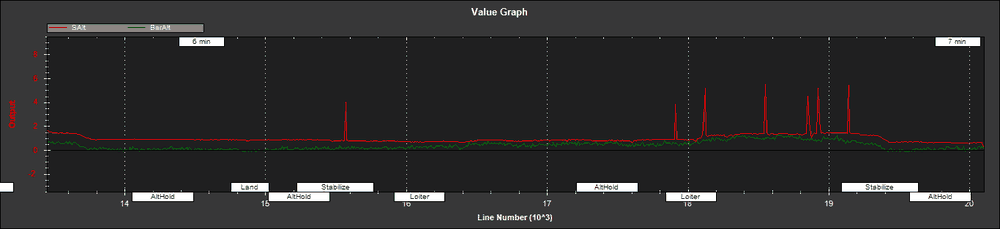

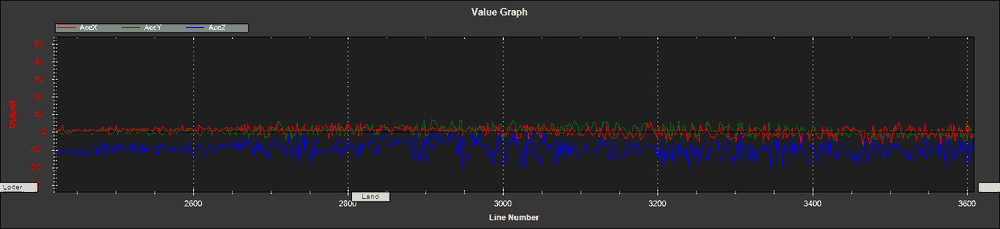

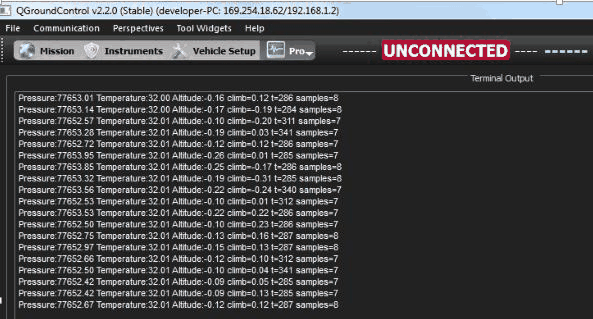

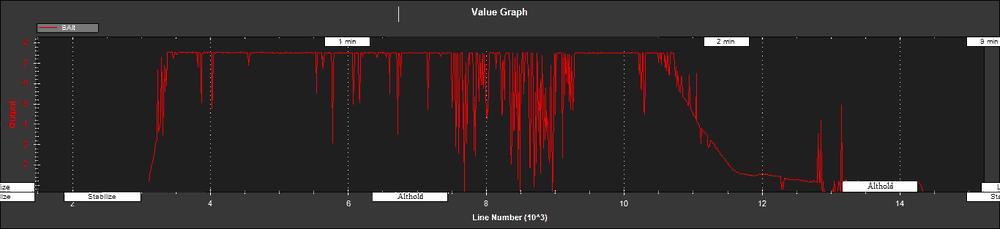

Root-caused faults from flight logs: re-centred an off-centre IMU causing drift; damped vibration and shielded the barometer for Loiter; low-pass filtered sonar for AltHold; moved the compass away from ≈80% motor interference and set local magnetic declination (2.11°E) to correct Auto-mode heading.

Study

Backed by a UAS communications study: command-and-control and telemetry links (GSM/GPRS, line-of-sight 900 MHz–5.8 GHz) and UAS spectrum requirements (ITU-R M.2171).

Engineering rationale

Control, telemetry and video

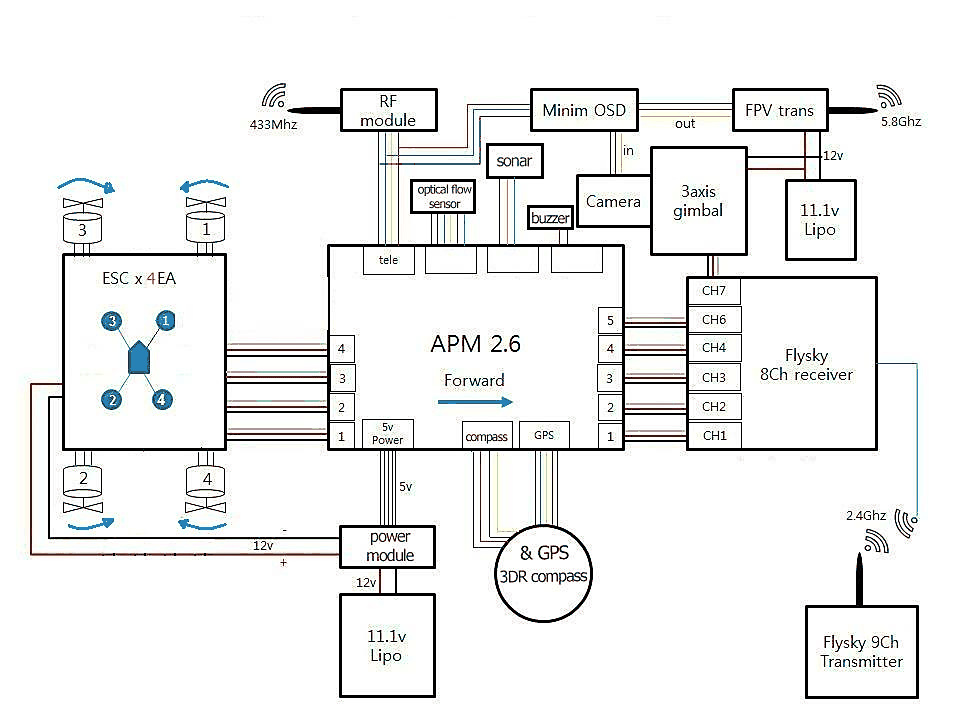

The APM flight controller reads navigation and attitude sensors and drives the propulsion system. RC commands, MAVLink telemetry and the 5.8 GHz FPV stream are separate paths. Keeping those paths explicit explains why a working video link does not prove command or navigation health.

Testing as an engineering loop

The report-derived material covers calibration, PID tuning and flight-mode testing. Log-driven fixes include IMU re-centring, vibration damping and barometer shielding, sonar filtering and compass placement. Before/after figures should be read with the matching fault discussion in the README.

Scope of reported values

Propulsion values from eCalc are estimates; telemetry range and flight observations come from the documented tests. Tuned parameters describe this build and are not universal settings for other aircraft. The new overview diagram simplifies the original wiring and does not replace the build documentation.

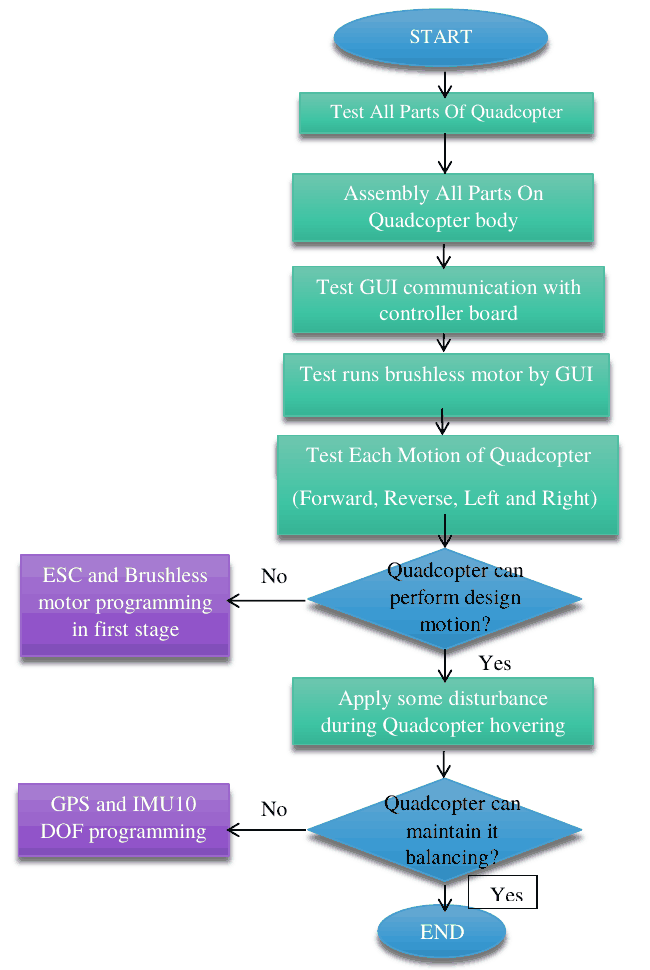

Engineering workflow
Explanatory workflow; read left to right across each row.

Evidence and validation

Suggested evidence checks for reviewing this work. These are not claimed pass results.
